Характеристики 1000MB RJ45 to 1000M fiber Converter MC220L
Brand: TP-LINK
Produce:
Standards and Protocols IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function
Full Duplex Flow Control (IEEE 802.3x)
Extends fiber distance up to 0.5km using 50/125um fiber, 0.22km using 62.5/125um fiber)
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
Ports
1 Gigabit SFP Slot
1 1000M RJ45 port (Auto MDI/MDIX)
Network Media
1000BASE-T
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-FX
Multi-mode Fiber
LED Indicators

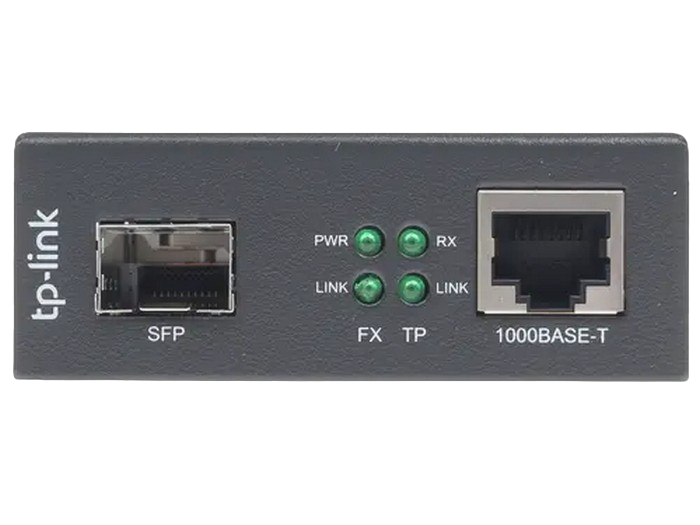

PWR, LINK, RX
Safety & Emission
FCC, CE
Dimensions (W*D*H)
3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Power Supply
External Power Adapter
