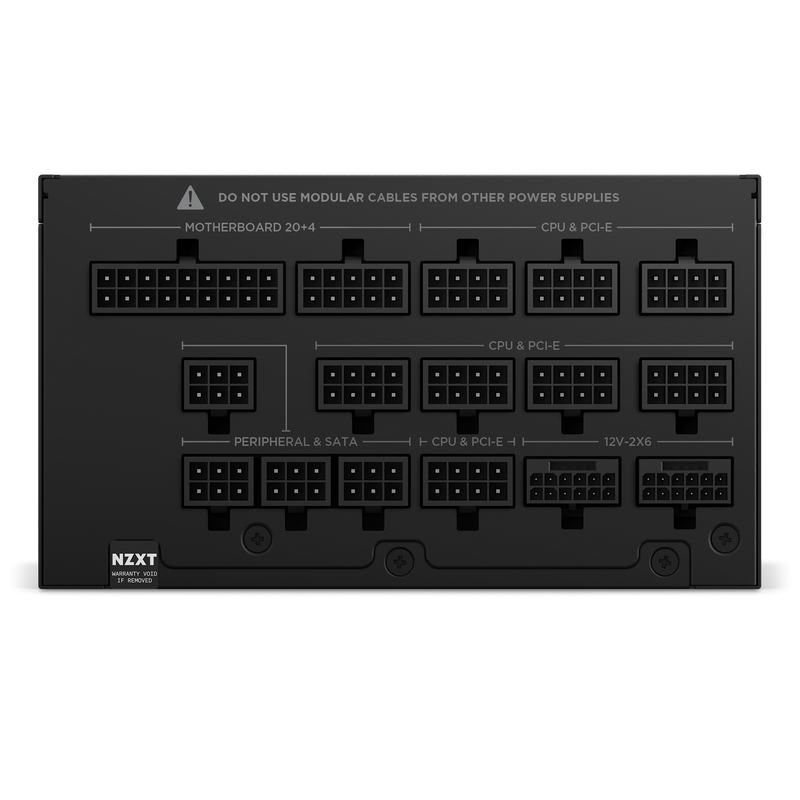

. Output Connectors 24-pin ATX Power Cable 1 4+4-pin CPU Power Cable 1 8-pin CPU Power Cable 1 6+2-pin PCIe Power Cable 6 16-pin (12+4) 12V-2x6 PCIe Cable 2 SATA Cable 12 Peripherals Cable 4 Cable Specs 24-pin ATX Power Cable 600mm with nylon sleeving 4+4-pin CPU Power Cable 700mm with nylon sleeving 8-pin CPU Power Cable 700mm with nylon sleeving 6+2-pin PCIe Power Cable 650mm with nylon sleeving 16-pin (12+4) 12V-2x6 PCIe Cable 650mm with nylon sleeving SATA Cable 500 + 150 mm with nylon sleeving Peripherals Cable 500 + 150 mm with nylon sleeving AC Input Rating 100 - 240Vac 15A-9A 50Hz-60Hz 200 - 240Vac 9A 50Hz-60Hz DC Output Rating 3.3V / +5V 22A (120W) 12V 125A (1500W) 5Vsb 3A (15W) Total 1500W (115-240Vac) / 1300W (100-115Vac) Energy Efficiency Rating 80 Plus Platinum 10% loading 92% @115Vac 20% loading 94% @115Vac 50% loading 93.8% @115Vac 100% loading 90.8% @115Vac Electrical Features PF Correction Active @0.99 Protections OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) / Fan Specs Dimensions 140 x 140 x 25 mm Speed 2500 ± 10% RPM Airflow 125 CFM (Tpy.) Noise 41.0 dBA max Bearing Magnetic Levitation Bearing (ML) Operation MTBF 100,000 hours Temperature 0 - 50 °C Dimensions Width 5.91 in / 150 mm Height 3.39 in / 86 mm Depth 7.09 in / 180 mm General Material(s) Steel, PCB and Plastic Compliance Standard ATX12V v3.1 / EPS12V v2.92 Regulation & Certification FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65 Model Number PA-PA-5P1BB-EU
