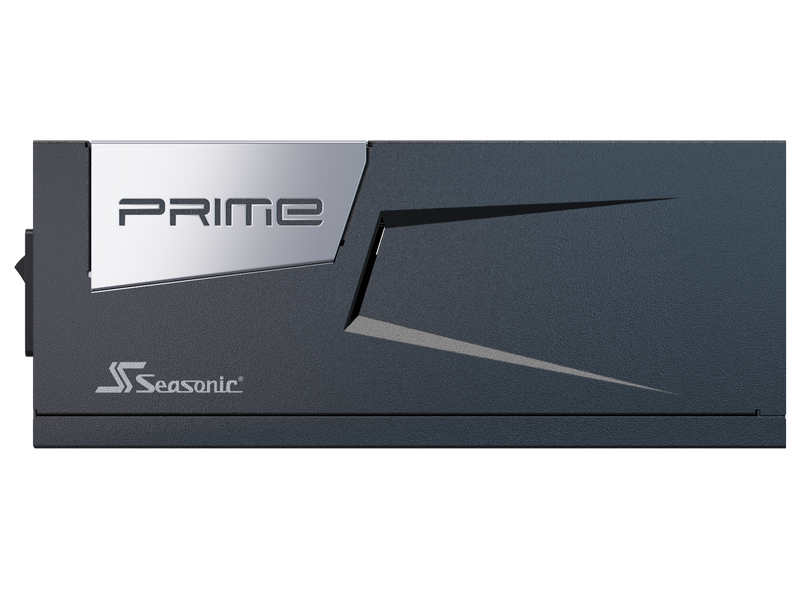

Характеристики Power Supply ATX 1600W Seasonic Prime PX-1600 80+ Platinum, ATX 3.0, 135mm, Full Modular
Brand: Seasonic
Produce:
.
PN: SSR-1600PD
Technical Specifications
80PLUS® Platinum
Cybenetics Efficiency Level Titanium (See report)
Cybenetics Noise Level Lambda A- (See report)
Form Factor Intel ATX 12 V
Dimensions 210 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information
Fan Size 135 mm
Fan Control Digital Hybrid Fan Control
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information
Modularity Fully Modular
Cable type Individual Black Cables with Braided Pattern
Electrical Features
Operating Temperature 0 - 50 °C
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental
Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH

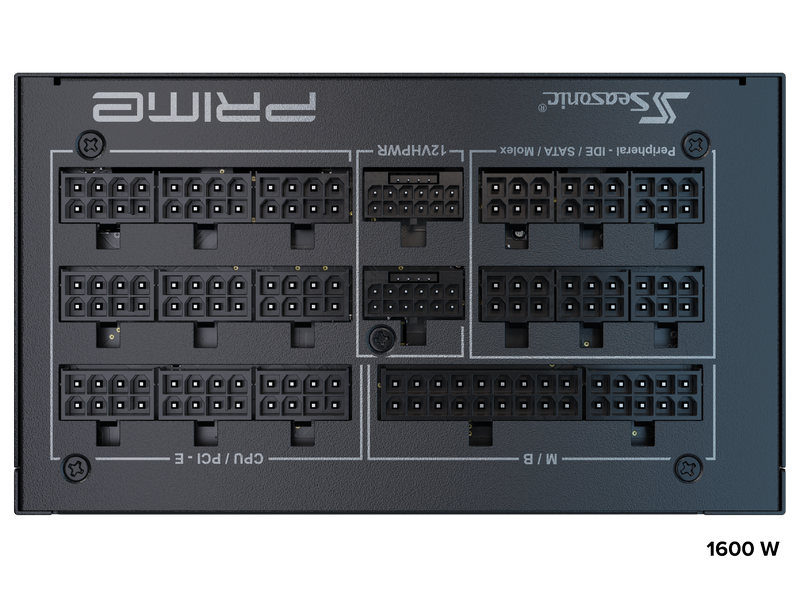

CPU (8/4 pins) 3
PCIe (8/6 pins) 6
SATA 16
SATA 3.3 V 2
Molex 3
12VHPWR 2
