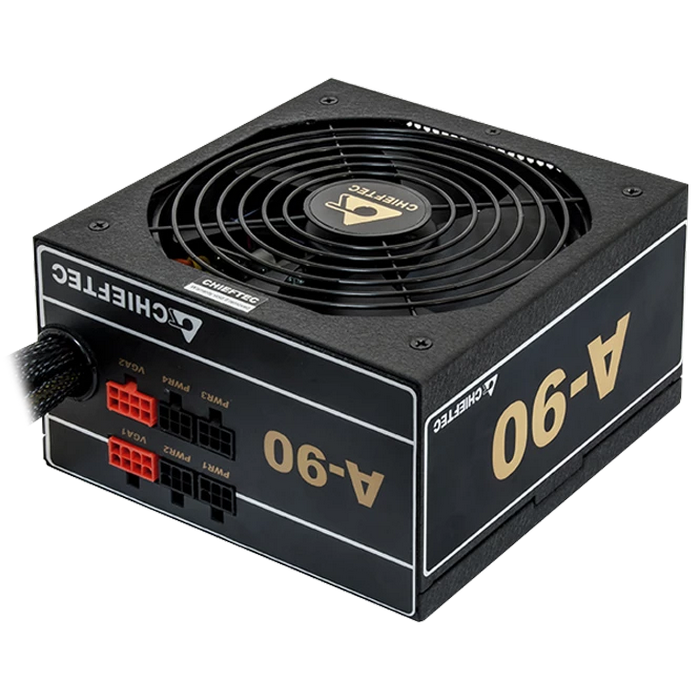

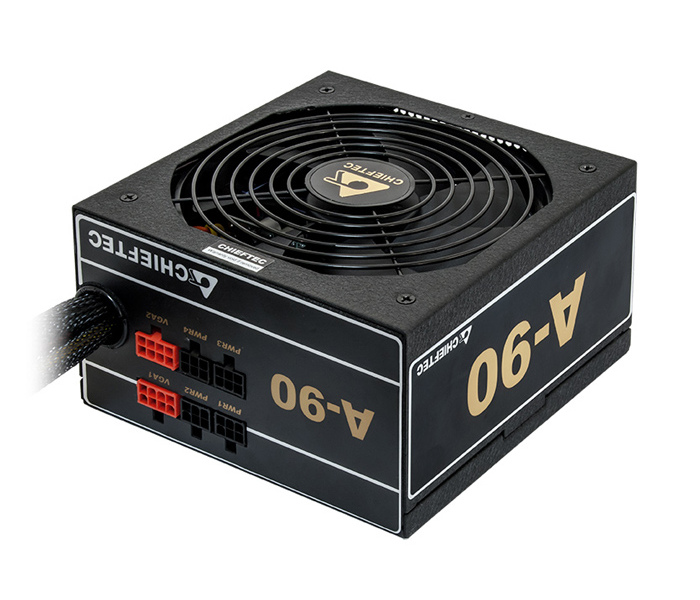

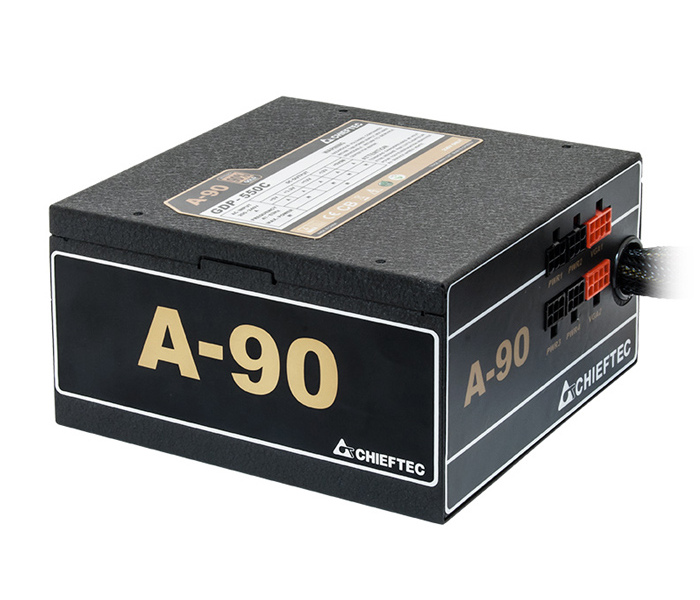

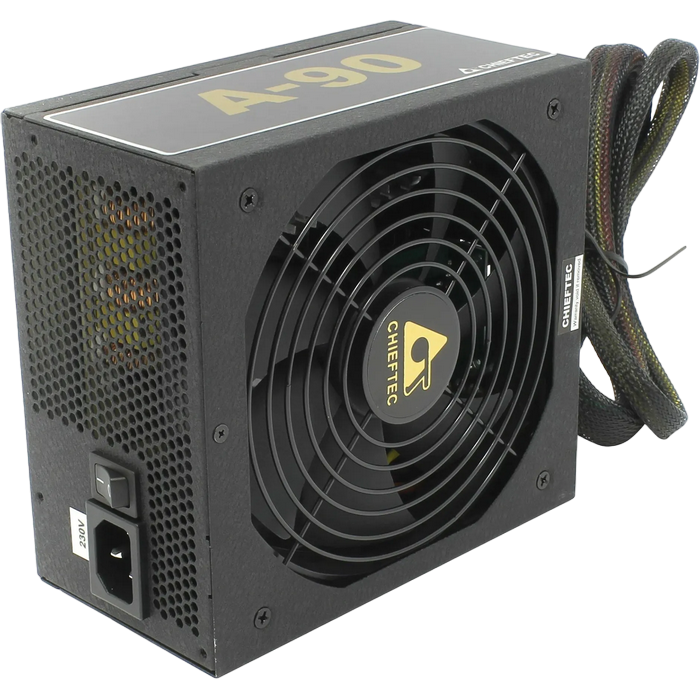

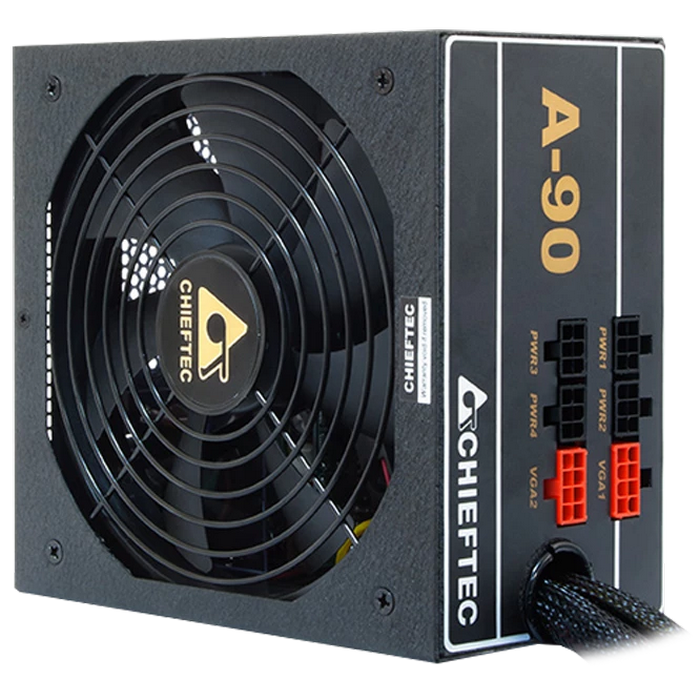

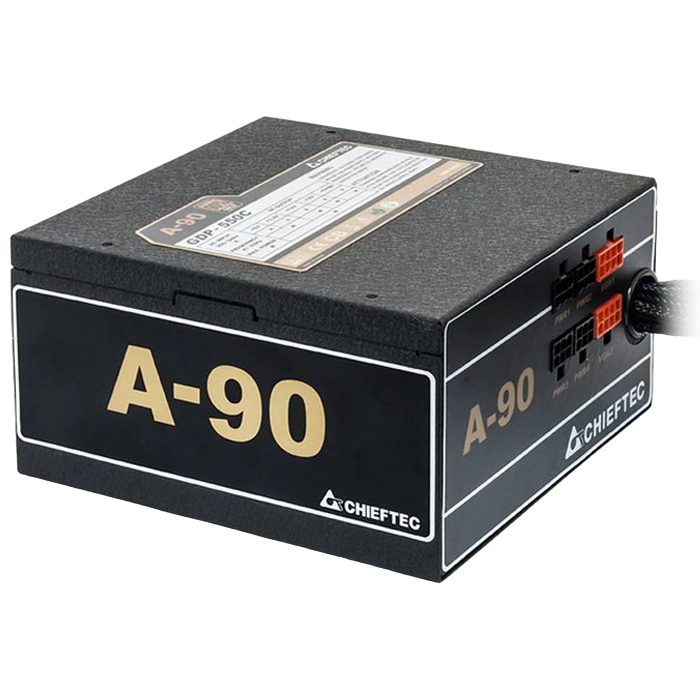

Характеристики Power Supply ATX 650W Chieftec A-90 GDP-650C, 90+, 140mm, Active PFC, Semi-modular, Black
Brand: Chieftec
Produce:
.
Performance
AC Input: 200-240V / 5A
Frequency: 47 - 63Hz
+5V: 20A
+3,3V: 20A
+5V & +3,3V combined: 120W
+12V 1: 53A / 636W
+12V 2: N/A
+12V 1 & +12V 2 combined: N/A
+12V 3: N/A
+12V 4: N/A
+12V 3 & +12V 4 combined: N/A
P.F.: >0,9
-12V: 0,3A / 3,6W
+5VSB: 2,5A / 12,5W
Maximum Load: 650W
Native cable
20x4PIN ATX: 1
SATA: -
MOLEX: -
Floppy: -
4PIN 12V: -
8PIN 12V: -
8PIN (4+4) 12V: 1
6PIN PCIe: -
8PIN (6+2) PCIe: -
Modular cable:
24PIN ATX: -
SATA: 6
MOLEX: 3
Floppy: 1
4PIN 12V: -
8PIN 12V: -
8PIN (4+4) 12V: -
6PIN PCIe: -
8PIN (6+2) PCIe: 2
Features
Spezification: ATX 12V 2.3
Form factor: PS II
Efficiency: >90%
Dimension (DxWxH): 160 mm x 150 mm x 87 mm
PFC: Active PFC (0,9) (only 230V)
Fan: 140mm silent fan
Security: UVP (Undervoltage protection)
OVP (Overvoltage protection)
SCP (Short-circuit protection)
OPP (Overload protection)
OCP (Overcurrent protection)
OTP (Over Temperature Protection)
AFC (Automatic Fanspeed Control)
SIP (Surge & Inrush Protection)
Warranty: 24 Month
