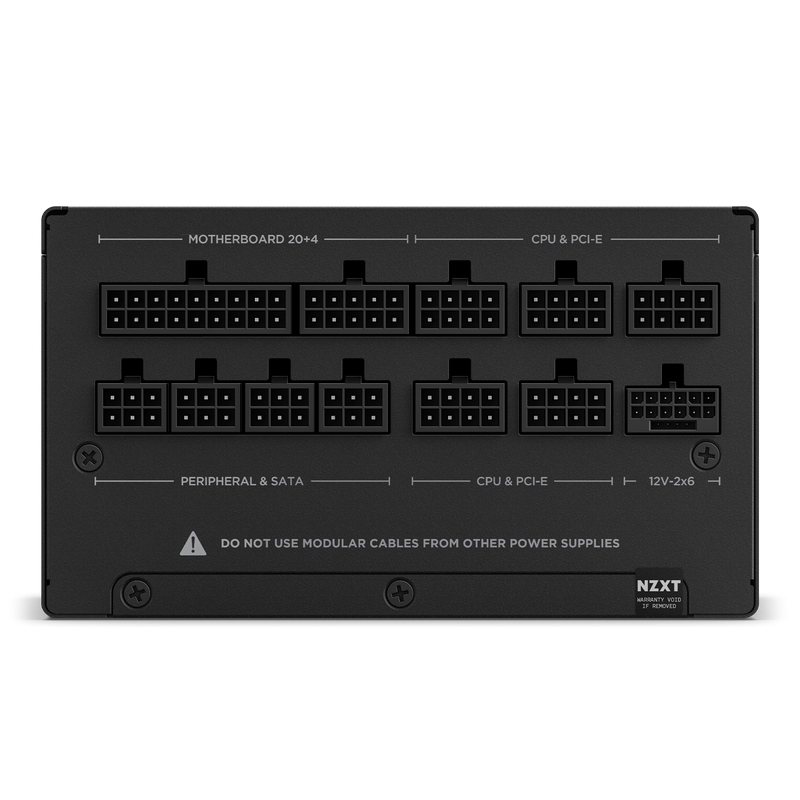

. Output Connectors 24-pin ATX Power Cable 1 4+4-pin CPU Power Cable 1 8-pin CPU Power Cable 1 6+2-pin PCIe Power Cable 3 16-pin (12+4) 12V-2x6 PCIe Cable 1 SATA Cable 12 Peripherals Cable 4 Cable Specs 24-pin ATX Power Cable 600mm with nylon sleeving 4+4-pin CPU Power Cable 700mm with nylon sleeving 8-pin CPU Power Cable 700mm with nylon sleeving 6+2-pin PCIe Power Cable 650mm with nylon sleeving 16-pin (12+4) 12V-2x6 PCIe Cable 650mm with nylon sleeving SATA Cable 500 + 150mm Peripherals Cable 500 + 150mm AC Input Rating 100 - 240Vac 10A-5A 50Hz-60Hz 200 - 240Vac - DC Output Rating 3.3V / +5V 22A (120W) 12V 70.83A (850W) 5Vsb 3A (15W) Total 850W Energy Efficiency Rating 80 Plus Gold 10% loading 85.8% @115Vac 20% loading 89.5% @115Vac 50% loading 91.7% @115Vac 100% loading 89.2% @115Vac Electrical Features PF Correction Active @0.99 Protections OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) / Fan Specs Dimensions 135 x 135 x 25 mm Speed 2300 ± 10% RPM Airflow 93.02 CFM (Min.) Noise 44.5 dBA max Bearing Fluid Dynamic Bearing (FDB) Operation MTBF 100,000 hours Temperature 0 - 50 °C Dimensions Width 150 mm Height 86 mm Depth 160 mm General Material(s) Steel, PCB and Plastic Compliance Standard ATX12V v3.1 / EPS12V v2.92 Regulation & Certification FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65 Model Number (Black) PA-8G2BB-EU Model Number (White) PA-8G2BW-EU
