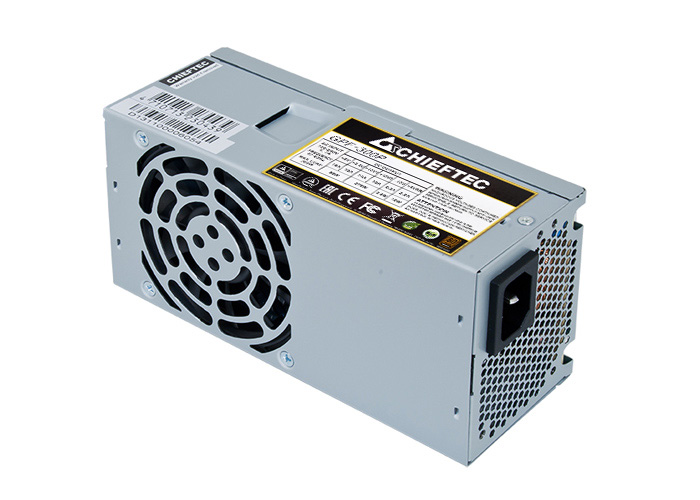

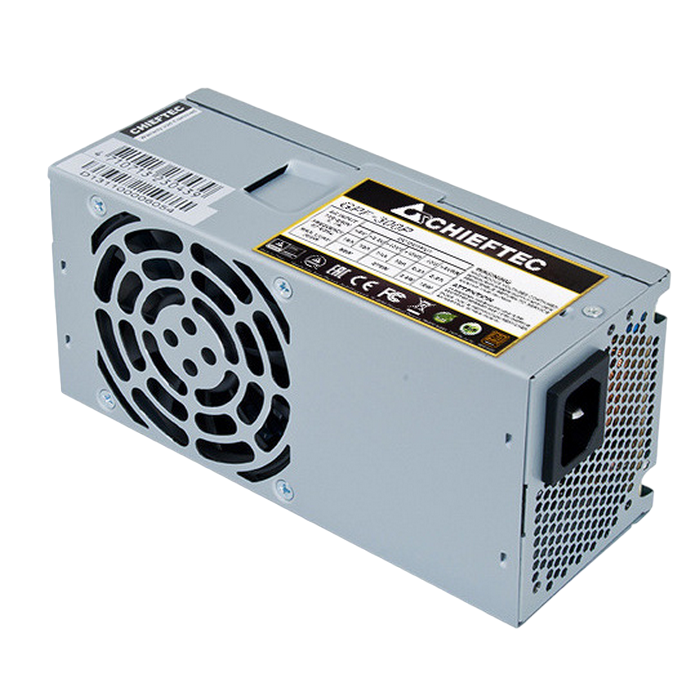

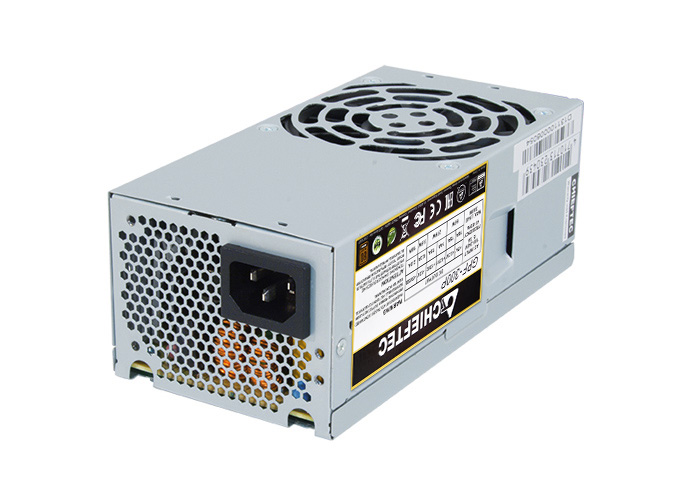

Характеристики Power Supply TFX 300W Chieftec GPF-300P, 85+, 80mm, Active PFC, Silver
Brand: Chieftec
Produce:
.
odel Smart 300W
Article no. GPF-300P
EAN code 4710713234666
Weight (without/with package) 1.07 kg / 1.13 kg
AC Input 100 - 240V / 6.3A
Frequency 47 - 63Hz
+5V 16A
+3,3V 15A
+5V & +3,3V combined 95W
+12V1 14A
+12V2 15A
+12V1, +12V2 combined 276W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 2,0A / 10W
Maximum Power 300W
TX12V Version ATX 12V 2.3
Efficiency 80+Bronze
Dimension (DxWxH) 175 mm x 86 mm x 65 mm
PFC Active PFC (0,9)
Fan 80mm silent fan
Security AFC (Automatic Fan speed Control)
OPP (Over Power Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Connectors
20+4 PIN ATX 1
8 PIN EPS(4+4) 1
8 PIN PCIe (6+2)
SATA 4
MOLEX/FLOPPY 2/1
